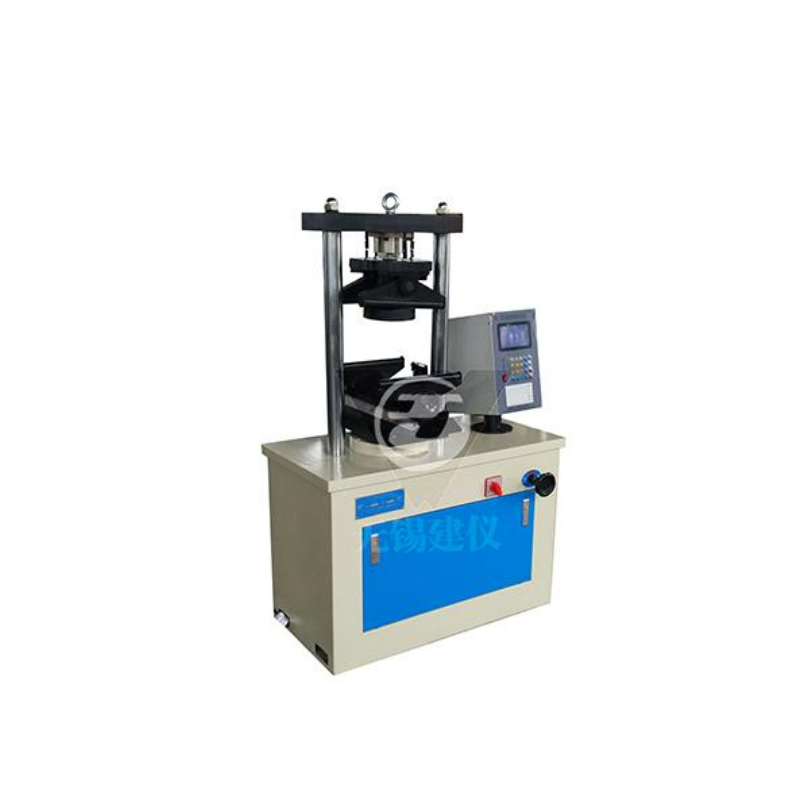

Wuxi Tye-50b Anti-folding and Compression Testing Machine (50kN)

The test machine is mainly used to determine the bending strength of 150mm x 150mm * 600mm (or 550mm) rectangular concrete blocks.It can also be used for testing the compressive strength of non-metallic materials such as mortar test block and concrete quick test.It has the advantages of high precision, compact structure and simple operation.

Maximum compressive load of compressive resistance: 50kN

Maximum span of support.: 450mm

Folding roll diameter: Ф25mm

Maximum compression test.: (100×100×100 )mm

Motor power: 180W

Power supply: 380V, 50Hz

Dimensions (length x width x height): 850×500×1300mm

Suttle: 365kg
