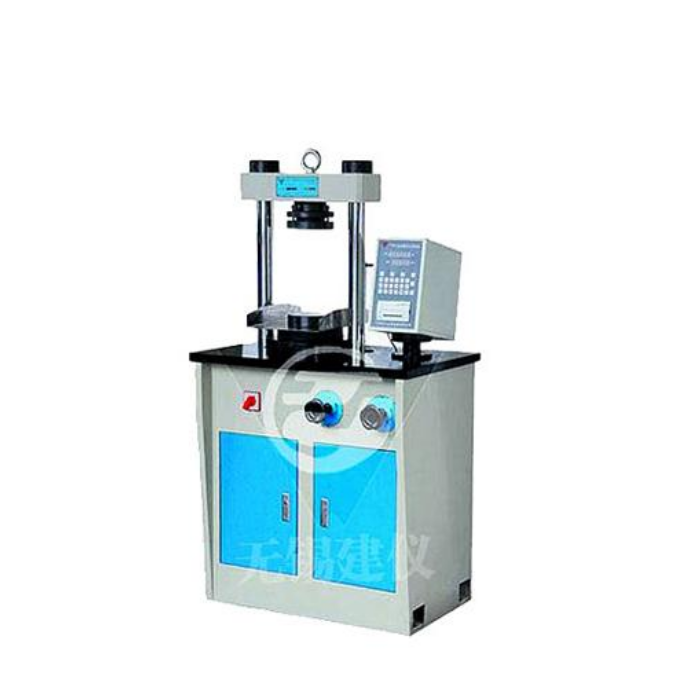

Wuxi TYE-300B Compression Testing Machine (300kN)

Purpose　

For the determination of compression strength of cement specimen, and for the test of flexural and compressive strength of other nonmetallic material if equipped with special fixture. The testing conforming with the requirements of (ISO test method), GB/T 17671-1999.

Technical parameters

Max .capacity: 300kN

Accuracy: ±1%

Travel of ram: 120mm

Diameter of platen: φ150mm

Distance between platens: 280mm

Max. size of flexure specimen: 150mm×150mm×600mm

Max. distance between bearers: 450mm

Distance between bars: 150mm

Diameter ofbearer: φ30mm

Net weight: ≈450kg
