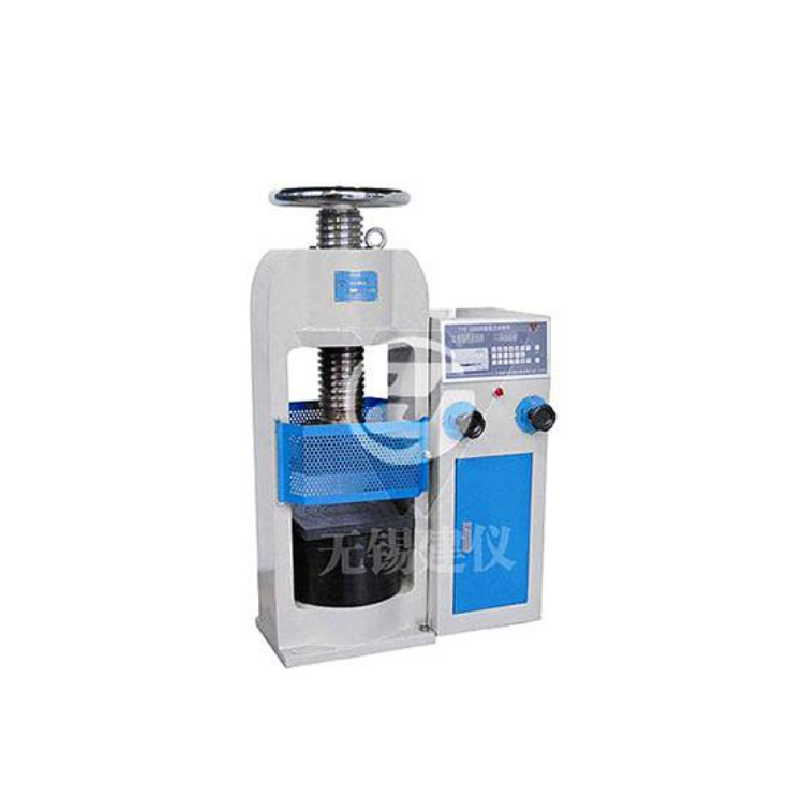

Wuxi TYE-2000B Pressure Testing Machine (0-1000kN / 0-2000kN)

Purpose:For testing of concrete, stone, cement, brick building materials such as compressive strength, using hydraulic transmission, electronic load and digital display, with compact structure, convenient operation, high precision load etc.

The bearing capacity: 0~1000kN, 0~2000kN

Relative error of indicator value.: ±1％

The motor power: 1.1kW

The piston stroke: 50mm

The power supply: 380V, 50Hz

Upper and lower pressure plate net distance.: 320mm

Upper and lower platen size.: (320×320)mm

Dimensions (length x width x height): (796×435×1325)mm

The net weight: 885kg
