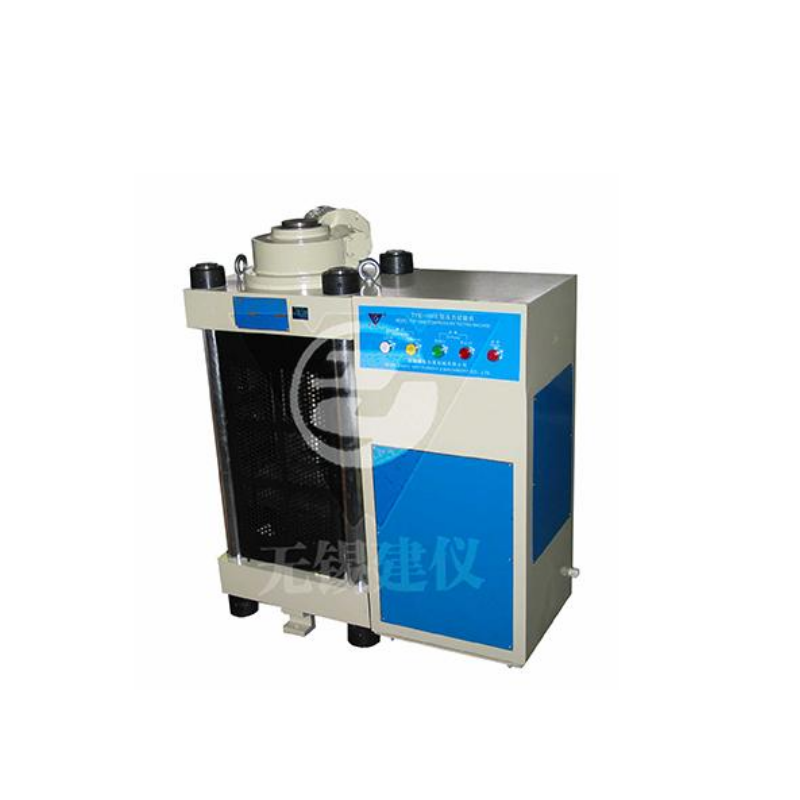

Wuxi Tye-1000e Pressure Testing Machine (1000kN)

The machine for the determination of various specimens of compressive strength, the maximum load of 1000 kN, the machine has the advantages of high precision, compact structure, simple operation, is the cement plant, construction units, product quality supervision and inspection, colleges and universities essential equipment.

Product execution standard: JB/T 8763 "technical conditions of electro-hydraulic cement pressure testing machine"

Max testing force: 1000kN

Range of measurement: 0～1000kN

Speed adjustable range: 1～40kN/s

Relative indication error: ±1%

Piston diameter: Φ185mm

Net distance between pressing plates.: 320mm

Workpiece dimensions: 250×250mm

Công suất: 1.47kW

Dimensions (length x width x height): 920×590×1250mm

Power: AC380V/50Hz

Suttle: 800kg
