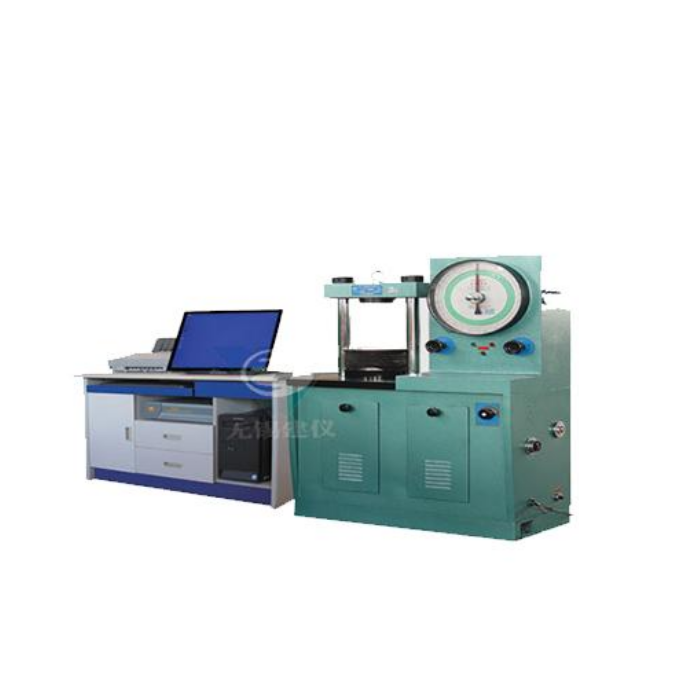

Wuxi NYL-300D Compression Testing Machine (300kN)

Purpose

The machine is specially designed for the compressive strength test of cement with the constant pace rate, digital display data storage and print controlled by the microcomputer conforming with the requirements of (ISO test method), GB/T 17671-1999. It also can be controlled manually.

Technical parameters

Max. capacity: 300kN

Accuracy: ±1%

Measuring range

Manual: graduation value of dial

0- 60kN × 0.2kN

0- 150kN × 0.5kN

0- 300kN × 1.0kN

Automatic: display on screen

Pace rate: (0.5-9.99)kN/s

Relative error on zero point: ±0.1%

Pace rate error: ±7%

Max. vertical clearance between Platens: 280mm

Platen diameter: φ150mm

Net weight: ≈800kg
