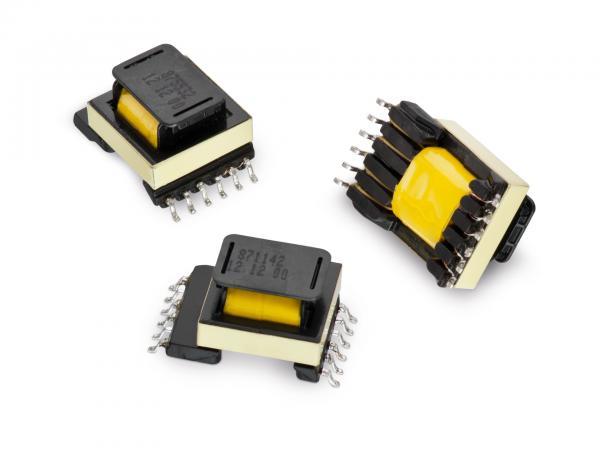

Wurth Elektronik 760875131 Offline Flyback WE-UOST Univ Offline 1500uH 0.8A 140mOhm

Width: 16.6 mm

Height: 13.5 mm

Length: 25.81 mm

Inductance: 1.5 mH

Turns Ratio: 160:14:14:16

Unit Weight: 7.600 g

Power Rating: 7.8 W

Mounting Style: SMD/SMT

Primary Winding: Single Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: SMD/SMT

Operating Frequency: 60 kHz to 150 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 650 mA

Secondary Voltage Rating: 12 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
