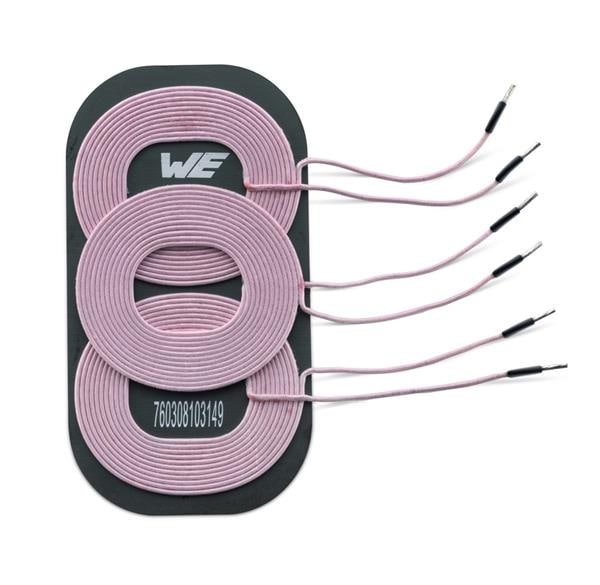

Wurth Elektronik 760308103149 Wireless Charging Coils WE-WPCC Transmitter 9.8uH 9A 55mOhms

Shape: Rectangle

Width: 57 mm

Height: 4.2 mm

Length: 106 mm

Function: Transmitter

Tolerance: 10 %

Inductance: 9.8 uH, 10.2 uH

Lead Length: 62.2 mm

Unit Weight: 50 g

Current Rating: 9 A

Number of Coils: 3 Coil, 1 Layer

Termination Style: Wire Leads

Maximum DC Resistance: 55 mOhms

Self Resonant Frequency: 8 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
