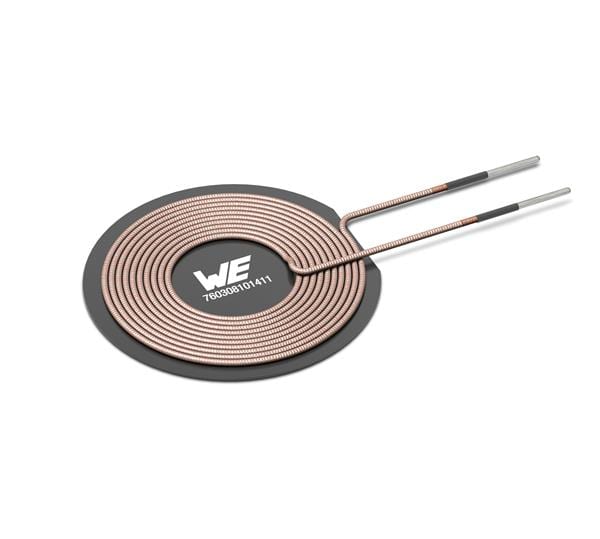

Wurth Elektronik 760308101411 Wireless Charging Coils WE-WPCC Transmitter 6.3uH 7.5A 48mOhms

Shape: Round

Height: 2.8 mm

Length: 50 mm

Function: Transmitter

Tolerance: 10 %

Inductance: 6.3 uH

Lead Length: 38 mm

Unit Weight: 7.300 g

Current Rating: 7.5 A

Number of Coils: 1 Coil, 1 Layer

Termination Style: Wire Leads

Maximum DC Resistance: 48 mOhms

Self Resonant Frequency: 20 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
