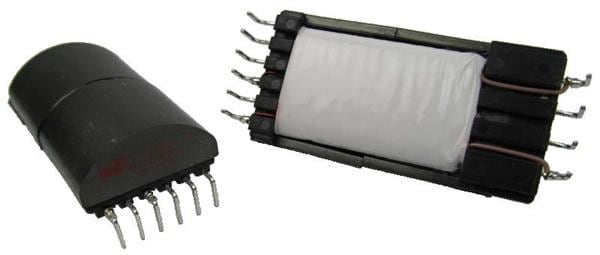

Wurth Elektronik 750841243 Offline Flyback MID-T8T for LEDLight 270uH 0.30Ohm

Width: 47 mm

Height: 12 mm

Length: 22.5 mm

Inductance: 270 uH

Turns Ratio: 1.91:1:0.5

Unit Weight: 21 g

Power Rating: 25 W

Mounting Style: Through Hole

Primary Winding: Single Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: Through Hole

Operating Frequency: 85 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 625 mA

Secondary Voltage Rating: 40 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
