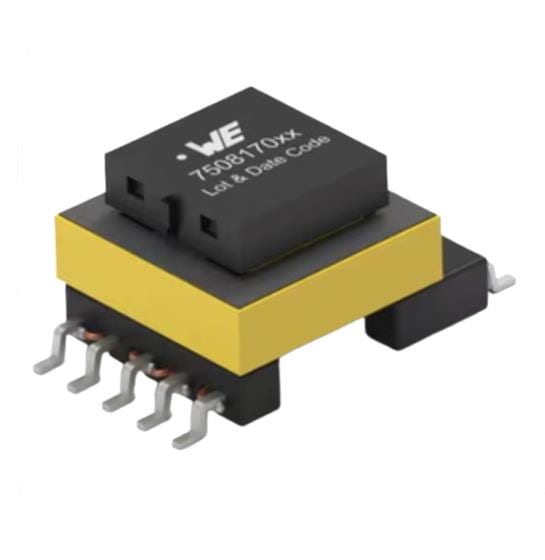

Wurth Elektronik 7508170312 Offline Flyback WE-UNIT 4W SMD Offline Trnsfmr

Width: 23.9 mm

Height: 11 mm

Length: 13.8 mm

Inductance: 1.99 mH

Turns Ratio: 4.63:1:1.06

Unit Weight: 3.848 g

Power Rating: 3.2 W

Mounting Style: SMD/SMT

Primary Winding: Dual Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: SMD/SMT

Operating Frequency: 50 kHz

Primary Voltage Rating: 55 VAC to 265 VAC

Secondary Current Rating: 210 mA

Secondary Voltage Rating: 15 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
