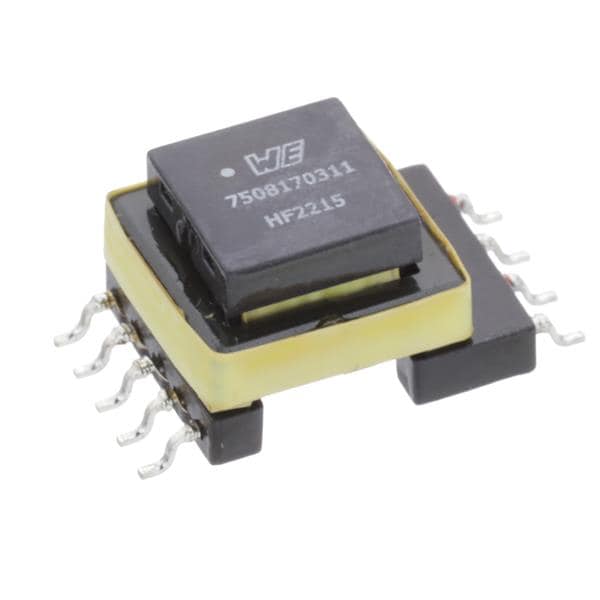

Wurth Elektronik 7508170311 Offline Flyback WE-UNIT 5.6W SMD Offline Trnsfmr

Width: 23.9 mm

Height: 11 mm

Length: 13.8 mm

Inductance: 491 uH

Turns Ratio: 5.75:1:1.31

Unit Weight: 5.547 g

Power Rating: 5 W

Mounting Style: SMD/SMT

Primary Winding: Dual Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: SMD/SMT

Operating Frequency: 150 kHz

Primary Voltage Rating: 55 VAC to 265 VAC

Secondary Current Rating: 420 mA

Secondary Voltage Rating: 12 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
