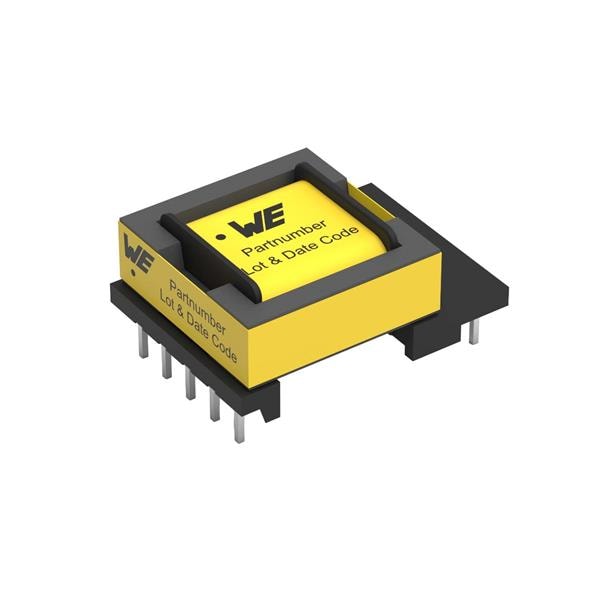

Wurth Elektronik 750811614 Offline Flyback MID-OLEFD EFD20 TH .8uH 1.4A 5V

Width: 29 mm

Height: 12 mm

Length: 21.5 mm

Inductance: 800 uH

Turns Ratio: 8.33:1.16:1.16:1

Power Rating: 20.9 W

Mounting Style: Through Hole

Primary Winding: Dual Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: Through Hole

Operating Frequency: 68 kHz to 220 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 1.2 A, 620 mA

Secondary Voltage Rating: 5 V, 24 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
