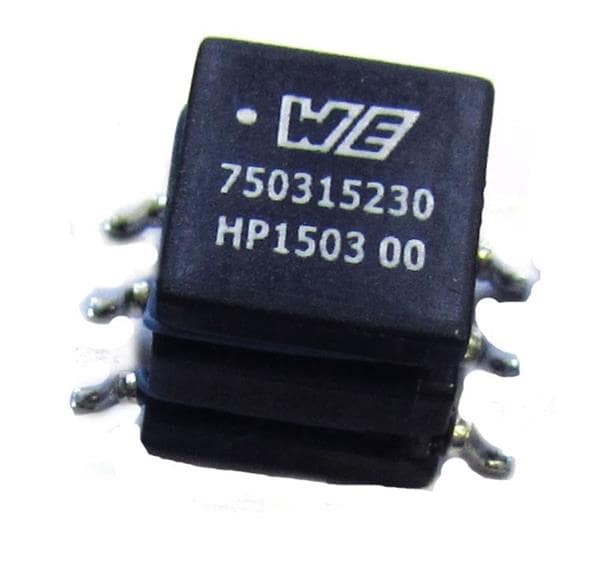

Wurth Elektronik 750315230 SMT Transformers MID-PPMAX MAX14940 384 uH 800 mW

Width: 12.7 mm

Height: 7.62 mm

Length: 9.14 mm

Inductance: 384 uH

Turns Ratio: 0.000710648

Unit Weight: 810 mg

Power Rating: 800 mW

Mounting Style: SMD/SMT

Primary Winding: Dual Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: SMD/SMT

Voltage Time - Et: 10.7 V/us

Operating Frequency: 350 kHz to 550 kHz

Primary Voltage Rating: 5 V

Secondary Current Rating: 150 mA

Secondary Voltage Rating: 5 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
