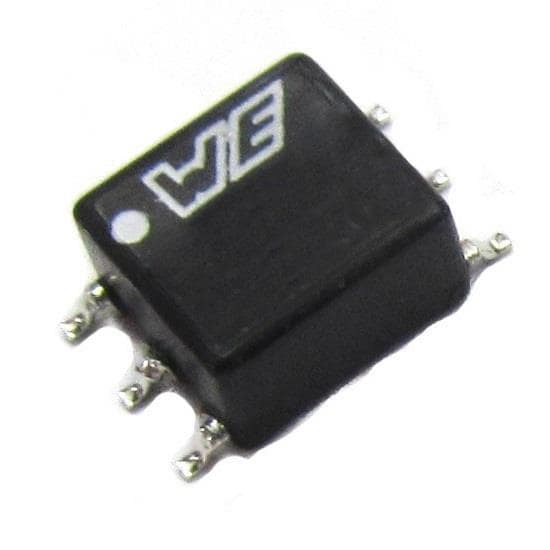

Wurth Elektronik 750315227 Push-Pull MID-PPMAX MAX14855 388 uH 1.1 W

Width: 10.46 mm

Height: 4.19 mm

Length: 6.73 mm

Inductance: 388 uH

Turns Ratio: 0.00071412

Unit Weight: 358.300 mg

Power Rating: 1.1 W

Mounting Style: SMD/SMT

Primary Winding: Dual Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: SMD/SMT

Voltage Time - Et: 9.44 V/us

Operating Frequency: 350 kHz to 550 kHz

Primary Voltage Rating: 3.3 V

Secondary Current Rating: 200 mA

Secondary Voltage Rating: 5.61 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
