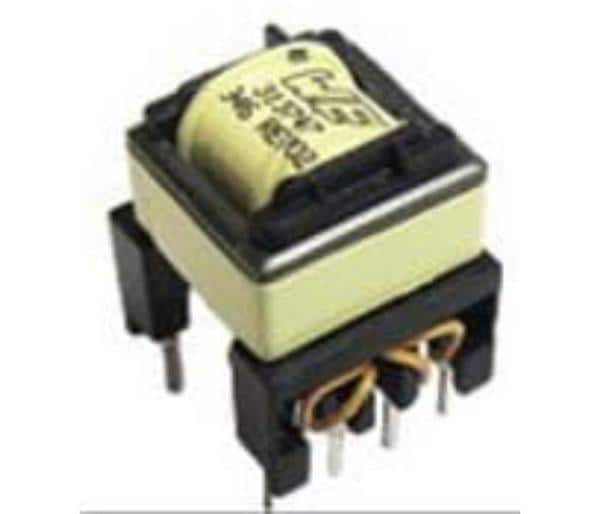

Wurth Elektronik 750310660 Offline Flyback MID-UNIT STM Offline 1.2mH 2Ohm

Width: 22.35 mm

Height: 17.53 mm

Length: 20.83 mm

Inductance: 1.2 mH

Turns Ratio: 7.87:1:1

Unit Weight: 12 g

Power Rating: 6 W

Mounting Style: Through Hole

Primary Winding: Single Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: Through Hole

Operating Frequency: 120 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 500 mA

Secondary Voltage Rating: 12 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
