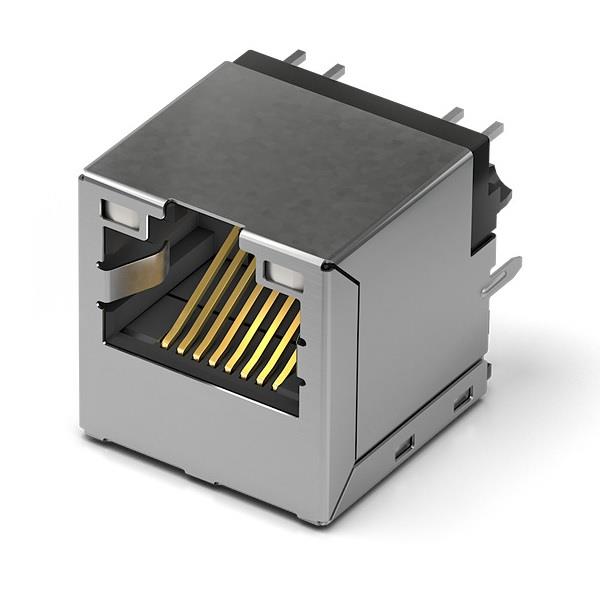

Wurth Elektronik 74980100000 Modular WE-RJ45LAN Integrated Transformer

Color: Black

Gender: Jack (Female)

Shielding: Unshielded

USOC Codes: RJ45

Application: 10/100 Base-T

Unit Weight: 5.600 g

Configuration: 1x1

Mating Cycles: 750 Cycles

Tab Direction: Top Entry

Mounting Angle: Vertical

Mounting Style: Through Hole

LED L / R Color: Yellow / Green

Number of Ports: 1 Port

Termination Style: Solder

Number of Contacts: 8 Contact

Number of Positions: 8 Position

Performance Category: Cat 5

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
