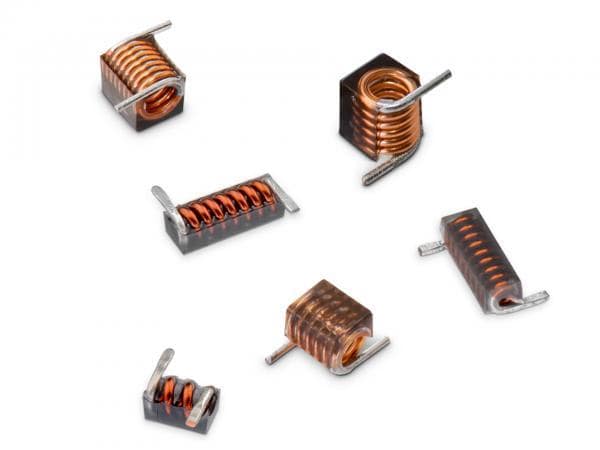

Wurth Elektronik 744914128 Air Coil Inductor WE-CAIR AirCoil 28nH 4A 5% 150MHz AEC-Q200

Width: 3.05 mm

Height: 3.18 mm

Length: 6.86 mm

Core Type: Air

Q Minimum: 105

Shielding: Unshielded

Tolerance: 5 %

Inductance: 28 nH

Application: RF

Termination: Standard

Unit Weight: 150 mg

REACH - SVHC: Details

Core Material: Wirewound

Qualification: AEC-Q200

Mounting Style: PCB Mount

Termination Style: SMD/SMT

Maximum DC Current: 4 A

Maximum DC Resistance: 6 mOhms

Self Resonant Frequency: 1.8 GHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
