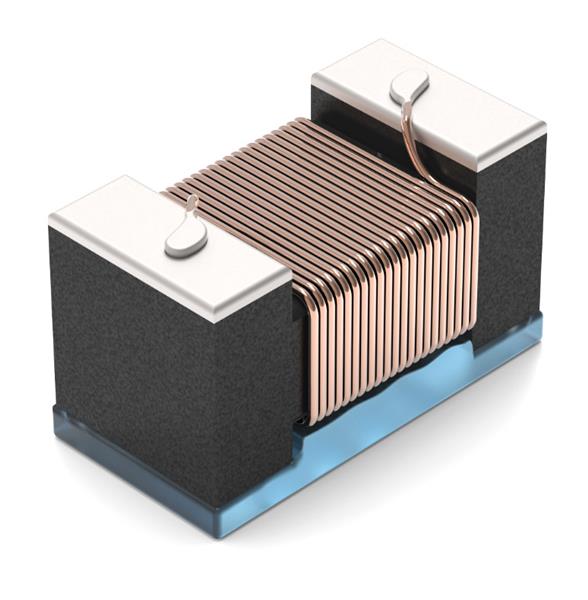

Wurth Elektronik 7447610168 RF Inductors WE-RFI SMT 68nH 0603 50mOhms

Width: 1.1 mm

Height: 0.9 mm

Length: 1.65 mm

Q Minimum: 13

Shielding: Unshielded

Tolerance: 5 %

Inductance: 68 nH

Application: RF, RFID

Unit Weight: 7 mg

Core Material: Ferrite

Mounting Style: PCB Mount

Test Frequency: 7.9 MHz

Termination Style: SMD/SMT

Maximum DC Current: 1.05 A

Maximum DC Resistance: 50 mOhms

Self Resonant Frequency: 1.925 GHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
