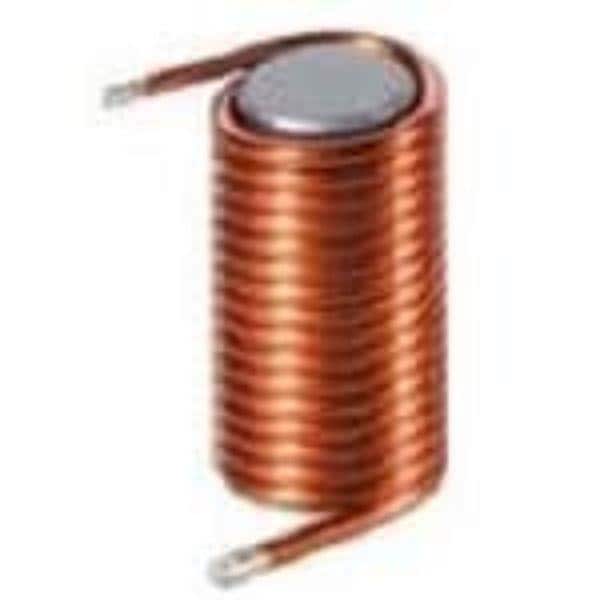

Wurth Elektronik 744710215 Rod Core Choke WE-SD Rod Core 2uH 15A 1.7mOhm

Length: 25.7 mm

Diameter: 8 mm

Core Type: Wirewound

Shielding: Unshielded

Tolerance: 25 %

Inductance: 2 uH

Application: Power

Termination: Standard

Unit Weight: 9.075 g

Lead Spacing: 17.5 mm

Core Material: Ferrite

Mounting Style: PCB Mount

Test Frequency: 10 kHz

Termination Style: Radial

Maximum DC Current: 15 A

Saturation Current: 34 A

Maximum DC Resistance: 1.7 mOhms

Self Resonant Frequency: 85 MHz

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
