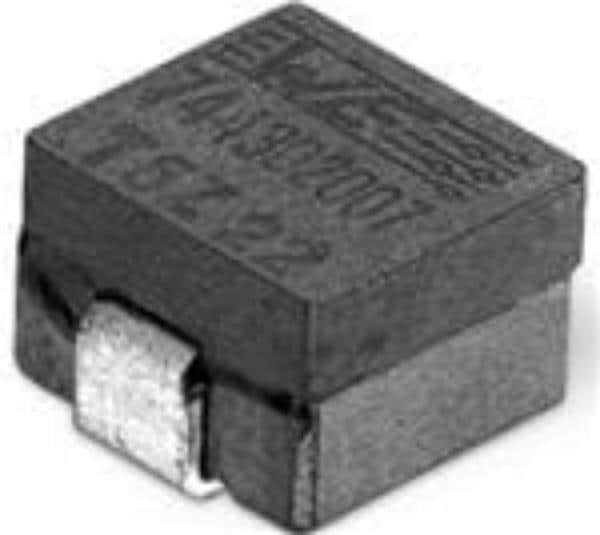

Wurth Elektronik 74431435022 High Power Inductor WE-HCM SMT HighCurr 220nH 32A 0.28mOhms

Width: 13.5 mm

Height: 3.3 mm

Length: 13.5 mm

Core Type: Wirewound

Shielding: Shielded

Tolerance: 20 %

Inductance: 220 nH

Application: High Current

Termination: Standard

Unit Weight: 2.325 g

Core Material: Manganese Zinc (MnZn) Ferrite

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: SMD/SMT

Maximum DC Current: 32 A

Saturation Current: 41 A

Maximum DC Resistance: 280 uOhms

Self Resonant Frequency: 60 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
