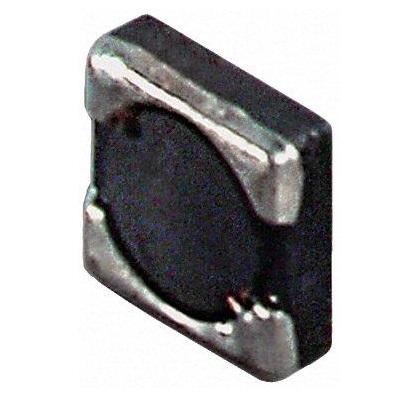

Wurth Elektronik 744065221 Power Inductor WE-TPC 1028 220uH .5A 750mOhm
Model744065221
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 10 mm
Height: 2.8 mm
Length: 10 mm
Core Type: Wirewound
Shielding: Shielded
Tolerance: 30 %
Inductance: 220 uH
Application: Power
Termination: Standard
Unit Weight: 881 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 500 mA
Saturation Current: 550 mA
Maximum DC Resistance: 750 mOhms
Self Resonant Frequency: 4 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
