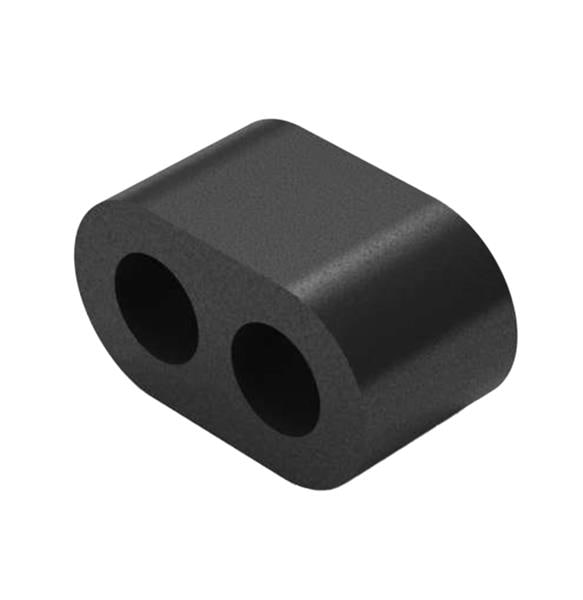

Wurth Elektronik 7427055 Balun & Multi-Aperture WE-RIB 154 Ohms a. 100 MHz single wire 122 Ohms a. 100 MHz double wire

Shape: Round

Impedance: 154 Ohms

Unit Weight: 3.350 g

Core Material: NiZn

Outside Width: 7 mm

Outside Height: 7.5 mm

Outside Length: 13.5 mm

Test Frequency: 100 MHz

Inside Diameter: 4 mm

Operating Temperature Range: - 40 C to + 90 C

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
