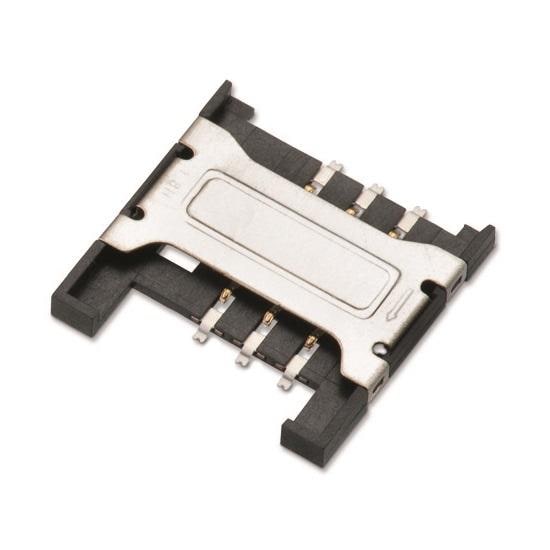

Wurth Elektronik 693010020611 Headers WR-CRD Mini SIM Card 6Pin Shielded Header

Pitch: 2.54 mm

Height: 1.8 mm

Length: 14.1 mm

Features: Shielded

Card Type: Mini SIM

Orientation: Right Angle

Unit Weight: 430 mg

Mating Cycles: 5000

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 2 Row

Voltage Rating: 50 VAC

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Number of Contacts: 6 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 500 MOhms

Insertion - Extraction Style: Push-Pull

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
