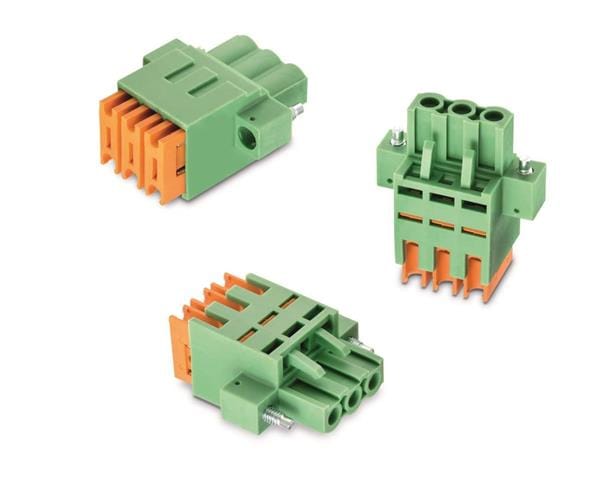

Wurth Elektronik 691359740006 Plugs WR-TBL 300VAC 7A 6Po Straight 22-18AWG
Model691359740006
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 5.08 mm
Width: 29.5 mm
Height: 14 mm
Length: 40.64 mm
Current Rating: 7 A
Mounting Angle: Straight
Mounting Style: Panel Mount
Voltage Rating: 300 VAC
Wire Gauge Max: 18 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Connection Method: IDC/IDT
Termination Style: Through Hole - Press Fit
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
