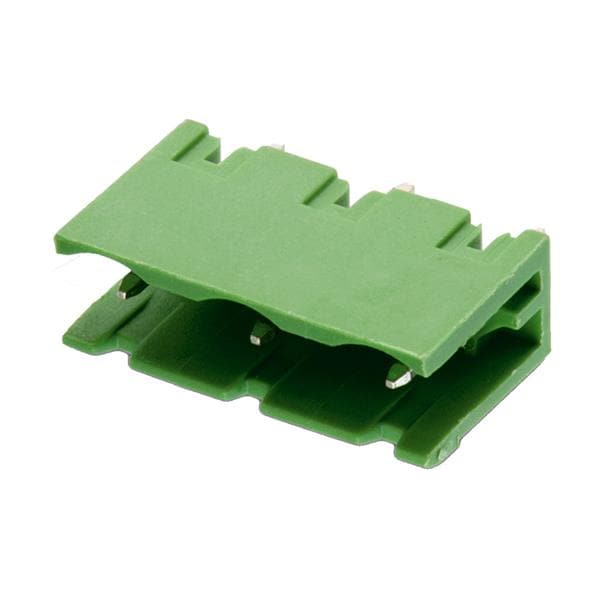

Wurth Elektronik 691311400005 Headers WR-TBL 300VAC 20A 5P Vertical
Model691311400005
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Pitch: 7.62 mm
Width: 8.5 mm
Height: 12 mm
Length: 36.28 mm
Unit Weight: 3.700 g
Current Rating: 20 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Voltage Rating: 300 VAC
Contact Plating: Tin
Contact Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Wire Orientation: Vertical
Connection Method: Push-In
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 5 Position
