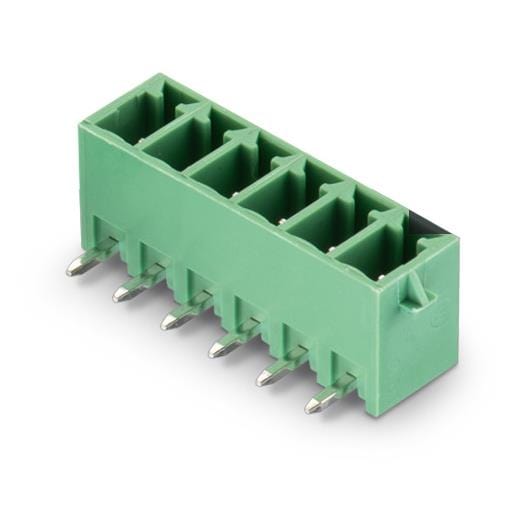

Wurth Elektronik 691305340006 Headers WR-TBL 300VAC 12A 6P Horizontal
Model691305340006
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Pitch: 3.81 mm
Width: 9.2 mm
Height: 7.2 mm
Length: 26.56 mm
Unit Weight: 1.532 g
Current Rating: 12 A
Mounting Angle: Horizontal
Mounting Style: Through Hole
Voltage Rating: 300 VAC
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
