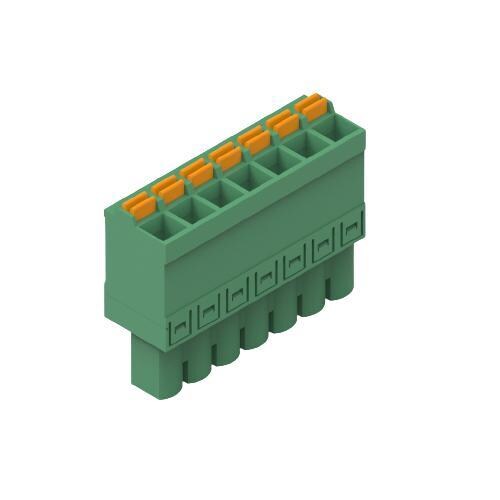

Wurth Elektronik 691304500007 Plugs WR-TBL 5.08mm pitch Monoblock Cable Green Vertical cable entry Plug Screwless Push In 7P
Model691304500007
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Pitch: 5.08 mm
Width: 11 mm
Height: 26.2 mm
Length: 35.56 mm
Current Rating: 12 A
Mounting Angle: Vertical
Mounting Style: Cable Mounts
Voltage Rating: 300 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 26 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 14 AWG
Connection Method: Push-In
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 7 Position
