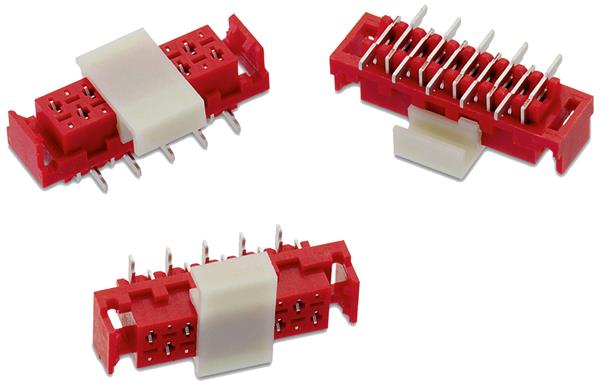

Wurth Elektronik 690367291876 Headers WR-MM 2.54mm Female RES=10mOhms

Pitch: 2.54 mm (0.1 in)

Row Spacing: 1.27 mm (0.05 in)

Unit Weight: 1.470 g

Housing Color: Red

Contact Gender: Socket (Female)

Current Rating: 1.5 A

Housing Gender: Female

Mounting Angle: Straight

Number of Rows: 2 Row

Voltage Rating: 100 VAC

Contact Plating: Tin

Contact Material: Phosphor Bronze

Housing Material: Polyamide

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 18 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
