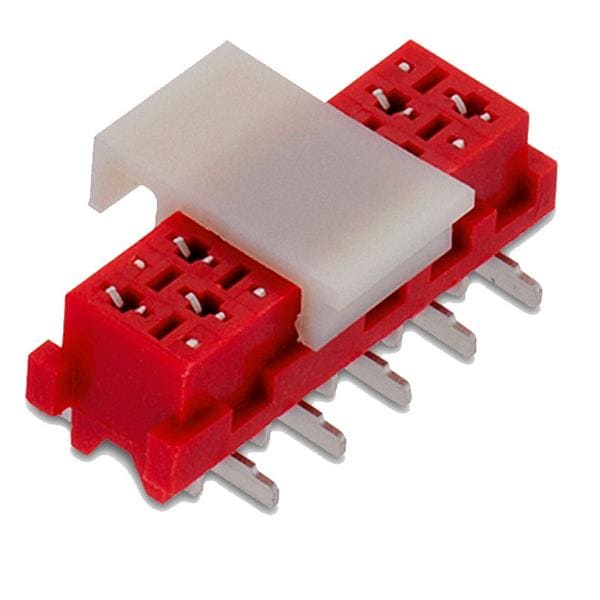

Wurth Elektronik 690367281676 Ribbon Cable WR-MM FMLCONN 16P SMT w/Plztn
Model690367281676
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board
Row Spacing: 1.5 mm (0.059 in)
Unit Weight: 890 mg
Housing Color: Red
Contact Gender: Socket (Female)
Current Rating: 1.5 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 16 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
