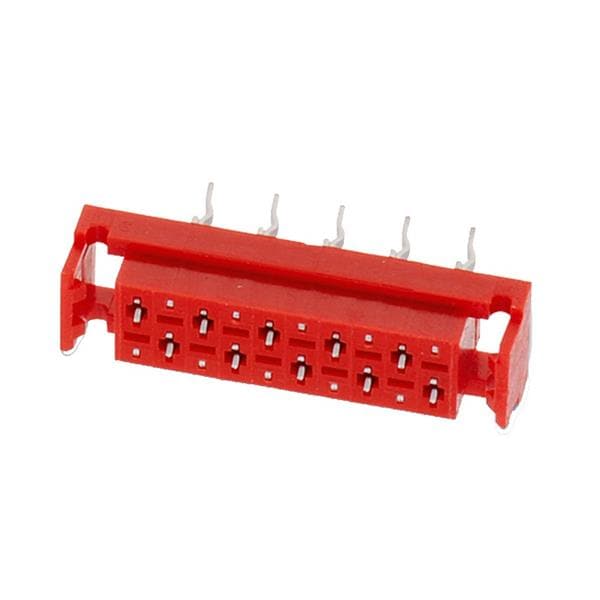

Wurth Elektronik 690367190872 Headers WR-MM FMLCONN w/Ltch 8P THT w/oPlztn

Pitch: 2.54 mm (0.1 in)

Row Spacing: 1.5 mm (0.059 in)

Unit Weight: 390 mg

Housing Color: Red

Contact Gender: Socket (Female)

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: Kinked Pin

Number of Rows: 2 Row

Contact Plating: Tin

Contact Material: Phosphor Bronze

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 2.9 mm (0.114 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
