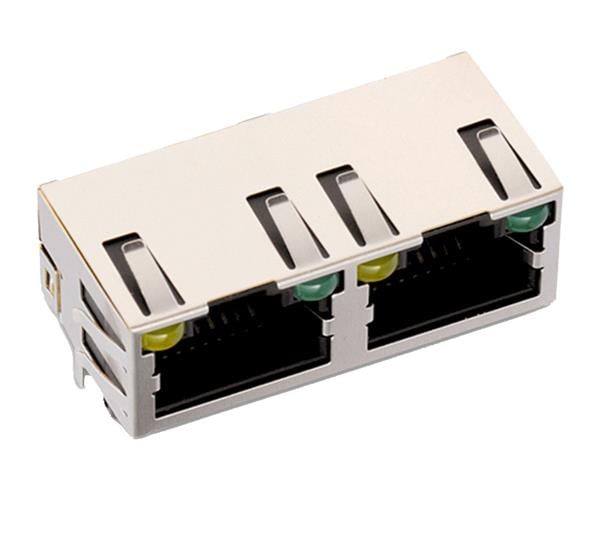

Wurth Elektronik 615016137721 Modular WR-COM Modular Jack RJ45 Horztl Dual prt

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Unit Weight: 7.300 g

Configuration: 1x2

Mating Cycles: 500 Cycles

Tab Direction: Tab Up

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 120 VAC

Contact Plating: Gold

Number of Ports: 2 Port

Contact Material: Copper Alloy

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
