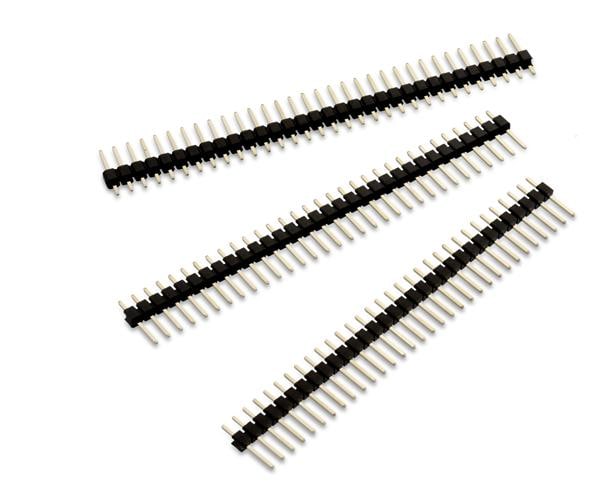

Wurth Elektronik 61303211121 Pin Strip WR-PHD 2.54mm 32Pin THT Pin Header

Pitch: 2.54 mm (0.1 in)

Unit Weight: 1.820 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Mating Post Length: 6 mm (0.236 in)

Flammability Rating: UL 94 V-0

Number of Positions: 32 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 3 mm (0.118 in)

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
