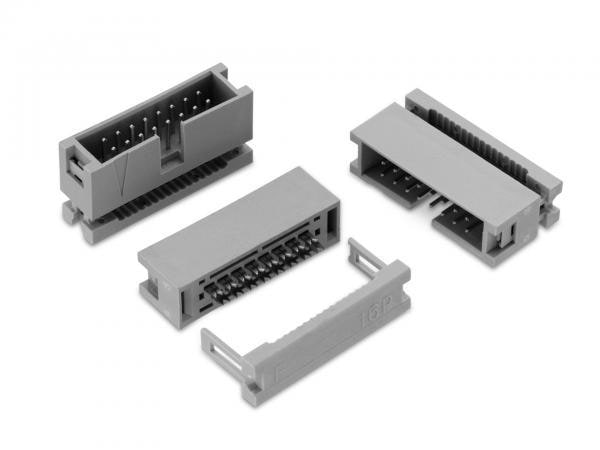

Wurth Elektronik 61201625821 Ribbon Cable WR-BHD 2.54mm Male 16P Gold IDC Conn

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 3.440 g

Housing Color: Gray

Latching Type: Unlatched

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: IDC

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
