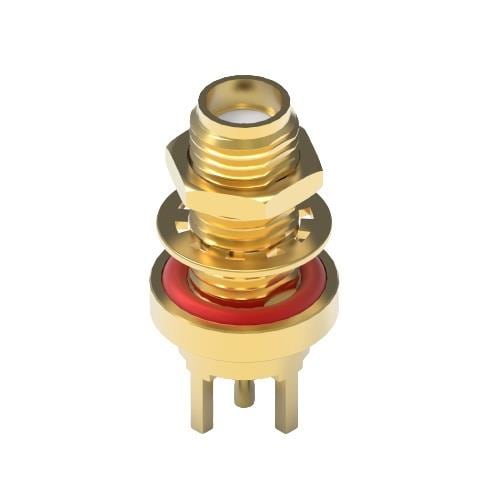

Wurth Elektronik 60312052111533 Connectors WR-SMA SMA PCB THT J ST IP67 12.4mm R MT
Model60312052111533
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
IP Rating: IP67
Impedance: 50 Ohms
RF Series: SMA
Body Style: Straight
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Cycles
Insertion Loss: 0.14 dB
Mounting Style: PCB Mount
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
