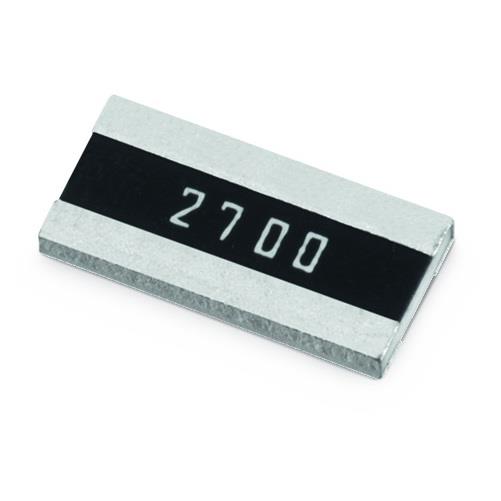

Wurth Elektronik 561020132037 Thick Film Resistors - SMD WRIS-KWKB 2700Ohms 1% 0.75W 200ppm

Width: 1.6 mm (0.063 in)

Height: 0.5 mm (0.02 in)

Length: 3.2 mm (0.126 in)

Features: Wide-Side Termination

Tolerance: 1 %

Resistance: 2.7 kOhms

Technology: Thick Film

Application: Current Sense

Termination: 2 Terminal

Unit Weight: 15.587 mg

Power Rating: 750 mW (3/4 W)

REACH - SVHC: Details

Mounting Style: PCB Mount

Voltage Rating: 45 V

Termination Style: SMD/SMT

Temperature Coefficient: 200 PPM / C

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 55 C
