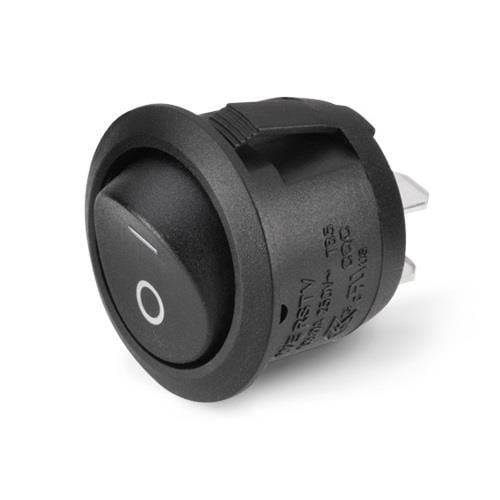

Wurth Elektronik 471002268143 Rocker Switches WS-RSTV 23mm
Life: 10000 Cycle
Color: Black
Width: 23 mm
Height: 14.5 mm
Length: 23 mm
Actuator: Rocker
Illuminated: Non-Illuminated
Unit Weight: 4 g
Contact Form: SPST
Panel Cutout: 20.2 mm
Mounting Type: Snap In
Current Rating: 10 A
Mounting Style: Panel Mount
Contact Plating: Silver
Switch Function: ON - OFF
Housing Material: Polyamide (PA)
Actuator Material: Polyamide (PA)
Termination Style: Quick Connect (0.187")
Voltage Rating AC: 250 VAC
Voltage Rating DC: 14 VDC, 28 VDC
Flammability Rating: UL 94 V-2
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: 0 C
