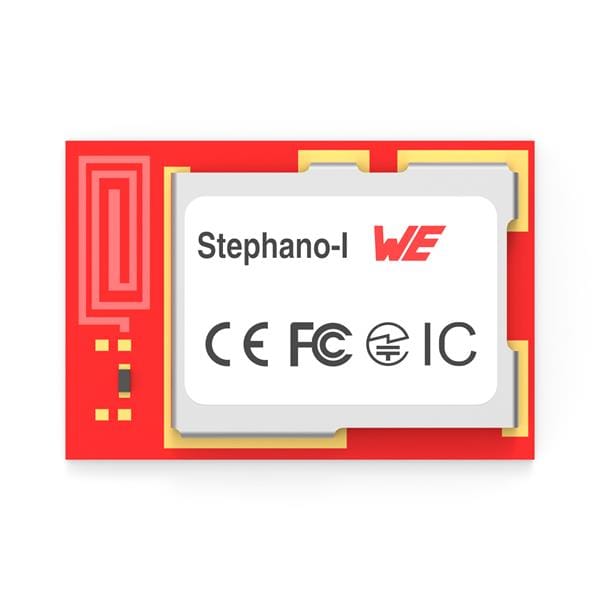

Wurth Elektronik 2617011025000 Bluetooth, WiFi WIRL-COMB Stephano-I WiFi & Bluetooth Combo LE 2.4 GHz Radio Module Smart antenna configuration with RF shield 9.5 x 13 x 2 mm

Frequency: 2.402 GHz to 2.48 GHz, 2.412 GHz to 2.472 GHz

Shielding: Shielded

Dimensions: 13 mm x 9.5 mm x 2 mm

Memory Size: 4 MB

Unit Weight: 450 mg

Output Power: 4.5 dBm, 13.4 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 87 dBm, - 89 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: Internal

Operating Supply Current: 5 uA

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 81 mA, 82 mA

Supply Current Transmitting: 161 mA, 167 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
