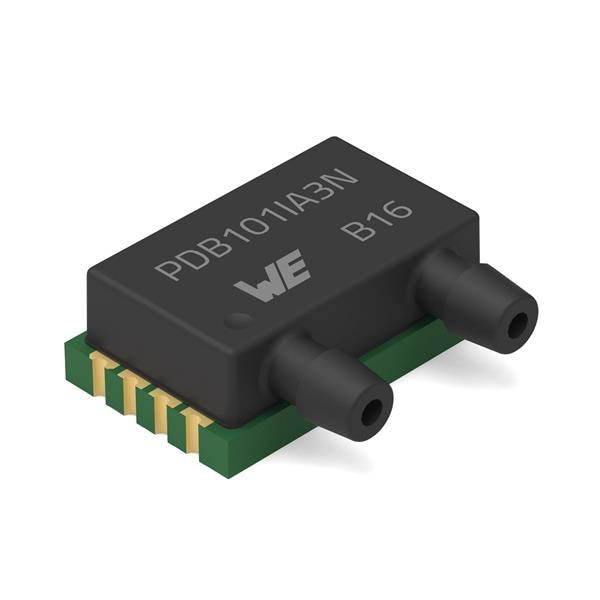

Wurth Elektronik 2513130810102 Board Mount Pressure Sensors WSEN-PDUS Differential Pressure Sensor I2C & analog horizontal pressure inlet barbed-port (+/-10 mbar)
Model2513130810102
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Accuracy: 0.75 %FSS
Port Size: 2.7 mm x 3.6 mm
Port Type: Barbed
Resolution: 15 bit
Output Type: Analog
Unit Weight: 620 mg
Pressure Type: Differential
Interface Type: I2C
Mounting Style: SMD/SMT
Operating Pressure: 2.5 MPa
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Operating Supply Current: 4 mA
Operating Supply Voltage: 3.3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
