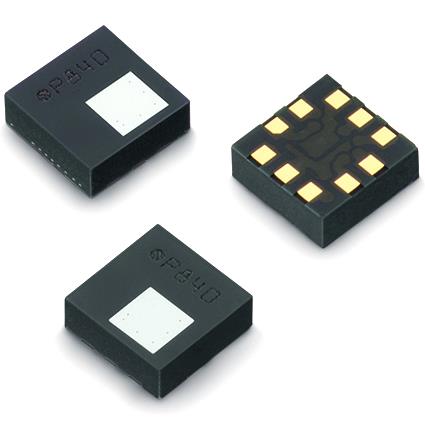

Wurth Elektronik 2511020213301 Board Mount Pressure Sensors WSEN-PADS Absolute 26-126 kPa

Accuracy: 100 Pa

Port Type: No Port

Resolution: 24 bit

Output Type: Digital

Unit Weight: 6.590 g

Pressure Type: Absolute

Interface Type: I2C

Mounting Style: SMD/SMT

Output Voltage: 200 mV

Moisture Sensitive: Yes

Operating Pressure: 26 kPa to 126 kPa

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Current: 12 uA

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
