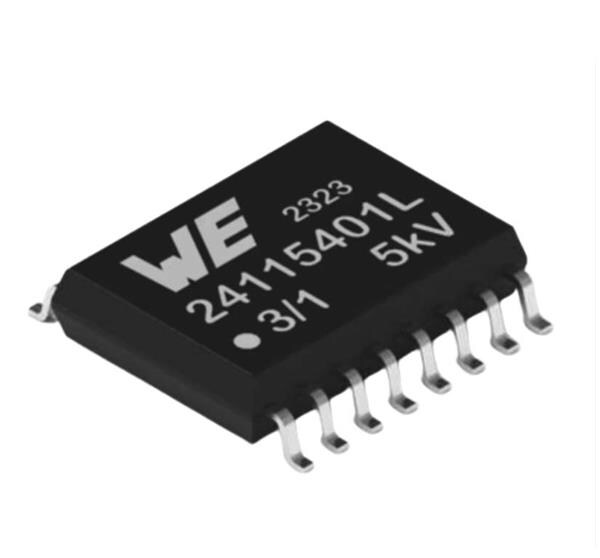

Wurth Elektronik 18024115401L Digital Isolators WPME-CDIP 4 Channel 3/1 5kV output low SOIC-16WB

Polarity: Unidirectional

Shutdown: Shutdown

Data Rate: 100 Mb/s

Pulse Width: 5 ns

Unit Weight: 420 mg

Mounting Style: SMD/SMT

Development Kit: 18824115401L

Forward Channels: 3 Channel

Reverse Channels: 1 Channel

Isolation Voltage: 5000 Vrms

Maximum Fall Time: 4 ns

Maximum Rise Time: 4 ns

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3.15 V

Pd - Power Dissipation: 1 W

Propagation Delay Time: 10 ns

Pulse Width Distortion: 0.2 ns

Operating Supply Current: 56.2 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
