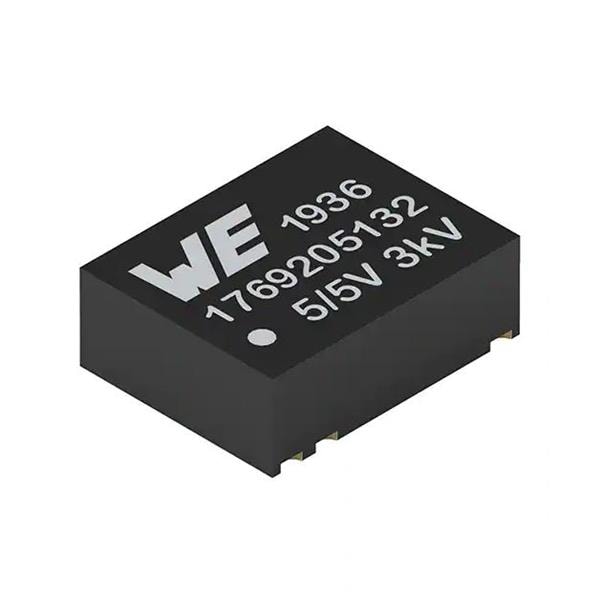

Wurth Elektronik 1769205132 Isolated WPME-FIMM Fixed Isolated MicroModule

Width: 7 mm

Height: 3.1 mm

Length: 9 mm

Industry: Industrial

Dimensions: 9 mm x 7 mm x 3.1 mm

Output Power: 1 W

REACH - SVHC: Details

Input Voltage: 5 V

Mounting Style: SMD/SMT

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 10 V

Input Voltage - Min: - 400 mV

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 200 mA

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
