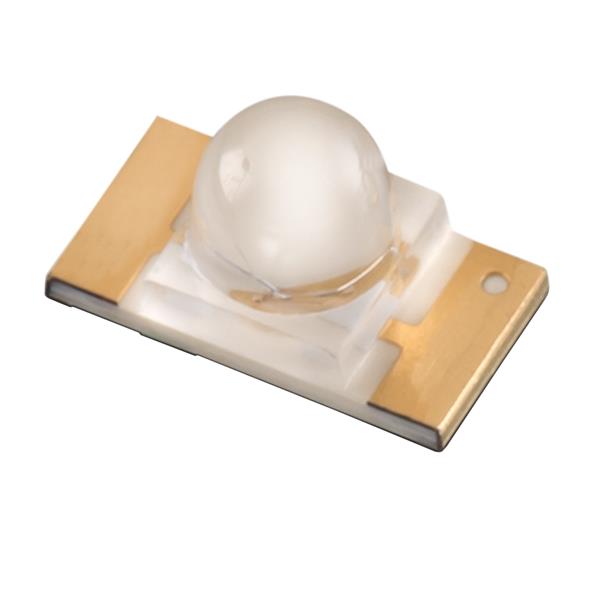

Wurth Elektronik 156120BS82500 Single Color LEDs WL-SMRW RvsMnt Mono Dome 1206 Blue

Width: 1.6 mm

Height: 1.85 mm

Length: 3.2 mm

LED Size: 3.2 mm x 1.6 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 10 mg

Power Rating: 78 mW

Viewing Angle: 20 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.3 mm

Lens Transparency: Water Clear

Illumination Color: Blue

Luminous Intensity: 700 mcd

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 3.2 V

Wavelength/Color Temperature: 465 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
