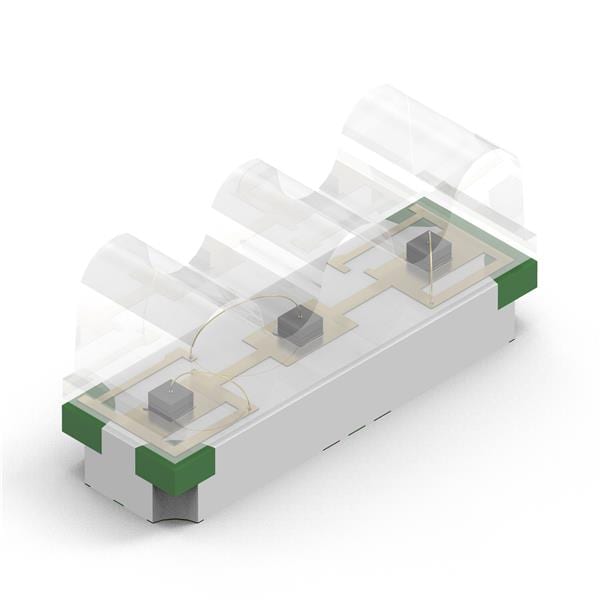

Wurth Elektronik 155124M172400 Multi-Color LEDs WL-SFSW 2.8/3/2 Volt Red, Green and Blue

Width: 1 mm

Height: 1.5 mm

Length: 3.2 mm

Lens Color: Colorless

Lens Shape: Round

Configuration: Common Anode

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Illumination Color: RGB

Luminous Intensity: 950 mcd, 1500 mcd, 350 mcd

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 2 V, 2.8 V, 3 V

Wavelength/Color Temperature: 620 nm, 525 nm, 465 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
