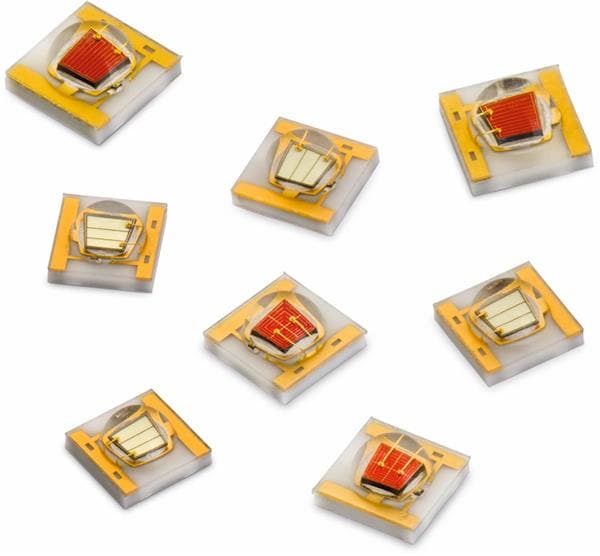

Wurth Elektronik 150353GS74500 High Power LEDs WL-SMDC Mono 85 lm Waterclr 3535 Green

Width: 3.45 mm

Length: 3.45 mm

LED Size: 3.45 mm x 3.45 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 40.100 mg

Power Rating: 2.66 W

Viewing Angle: 125 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.6 mm

Lens Transparency: Water Clear

Illumination Color: Green

Moisture Sensitive: Yes

If - Forward Current: 350 mA

Vf - Forward Voltage: 3.4 V

Luminous Flux/Radiant Flux: 85 lm

Wavelength/Color Temperature: 525 nm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
