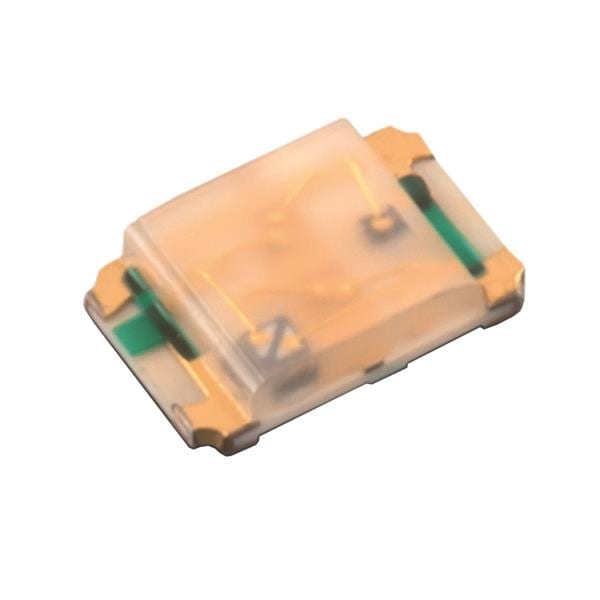

Wurth Elektronik 150080M153000 Multi-Color LEDs WL-SFCD SMDFlClr Chp Diffused 0805 R/G/B

Width: 1.3 mm

Height: 0.5 mm

Length: 2 mm

LED Size: 2 mm x 1.3 mm

Lens Color: Colorless

Lens Shape: Rectangular

Unit Weight: 10 mg

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 1.4 mm x 1.3 mm

Lens Transparency: Diffused

Illumination Color: RGB

Luminous Intensity: 28 mcd to 285 mcd

Moisture Sensitive: Yes

If - Forward Current: 25 mA

Vf - Forward Voltage: 2 V, 3.3 V

Wavelength/Color Temperature: 550 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
