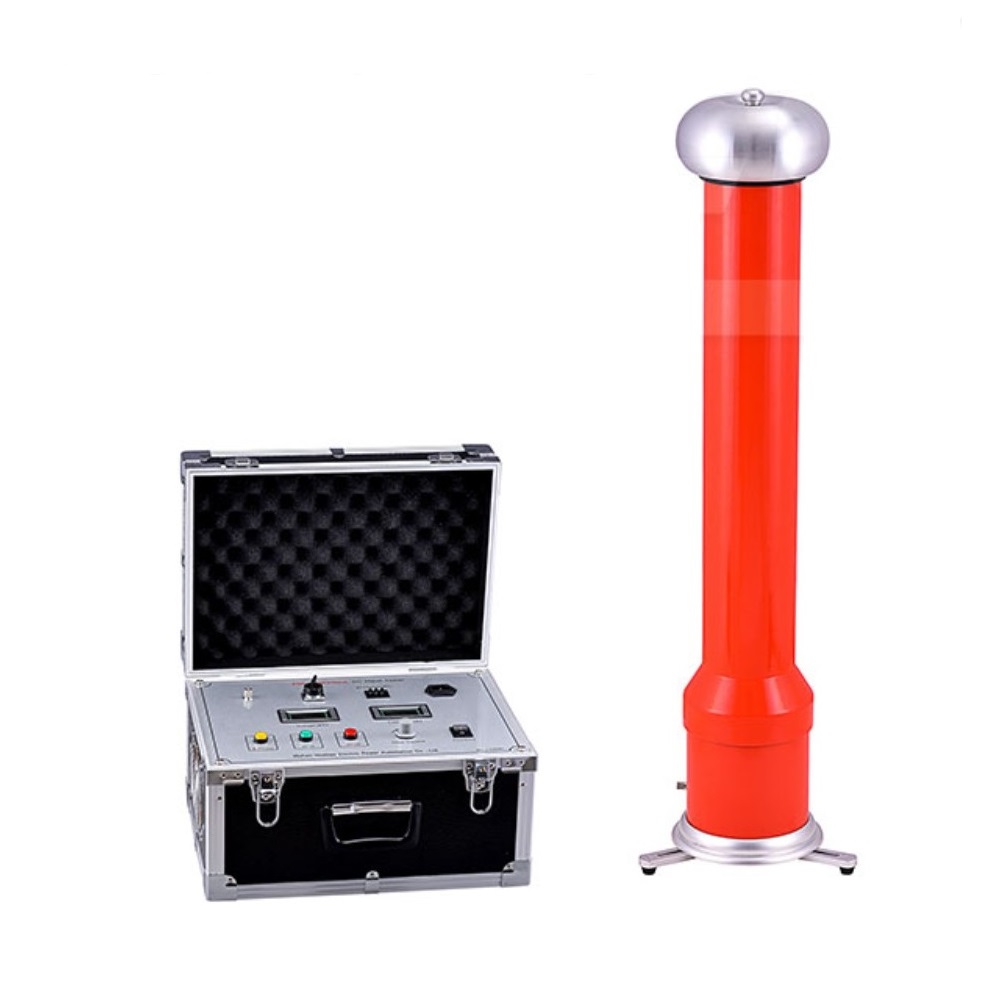

Wuhan ZGF-200/2 DC Hipot Tester (200kV, 2mA)

Rated voltage (kV): 200

Rated current (mA): 2

Rated power (W): 400

Control box quality (kg): 5.5

Pressure cylinder quality (kg): 8.7

Double cylinder height (mm): 970

Voltage accuracy: ±(1.0%Reading ± 2 words)

Current accuracy: ±(1.0%Reading ± 2 words)

Ripple coefficient: ≤0.5%

Overload capability:

- No-load voltage can exceed 10% of rated voltage for 10 minutes

- The maximum charging current is 1.25 times the rated current

Power supply: AC220V±10% 50Hz

Way of working:

- Temperature: -10-40°C

- Relative humidity: no more than 85% at room temperature of 25°C (no condensation)

- Altitude: below 1500 meters
