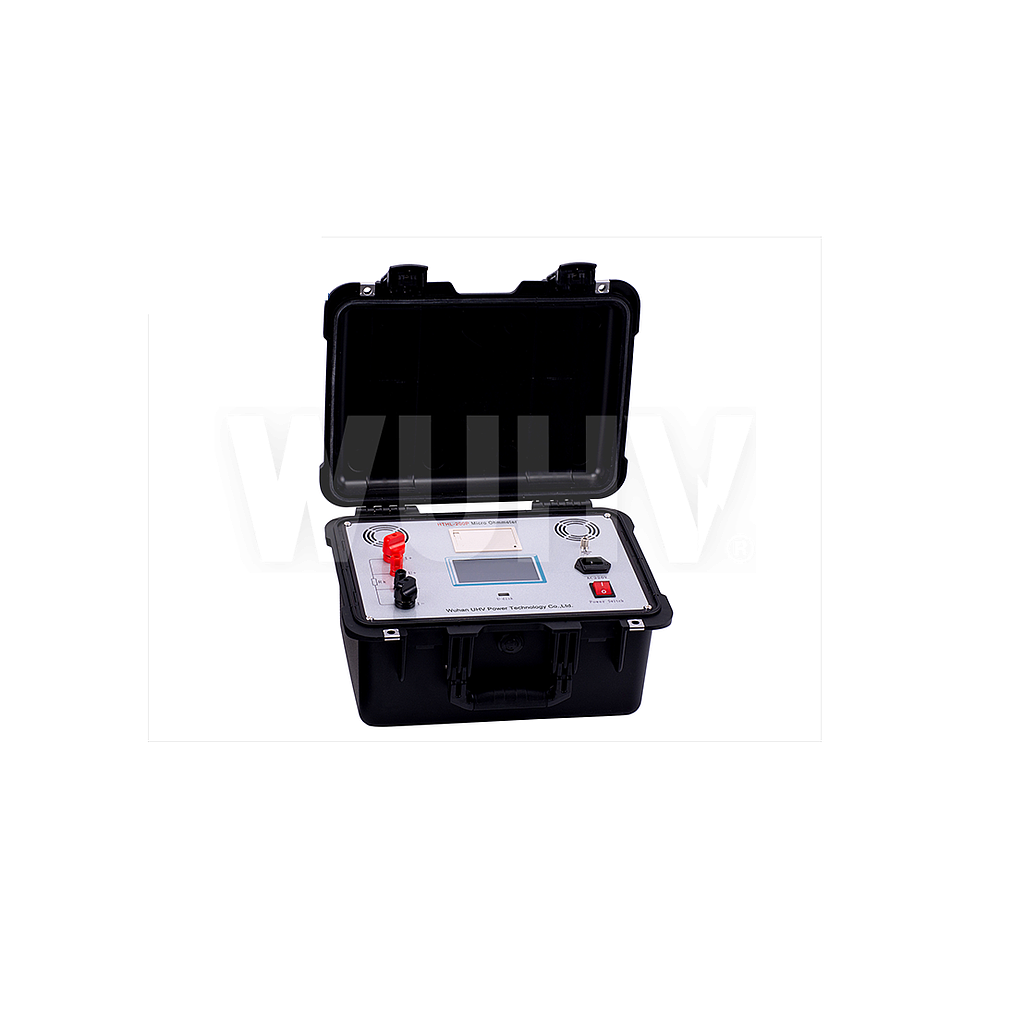

Wuhan UHV-H200P Contact Resistance Tester (200A, 0～2.500mΩ)

Measurement range：

50A 0~10mΩ

100A 0~5mΩ

150A 0-3.333mΩ

200A 0-2.500mΩ

Resolving power:

0~99.99μΩ 0.01μΩ

100.0~10000.0μΩ 0.1μΩ

Test flow: DC50A, 100A,150A,200A four fixed output

Measurement accuracy: ±(0.5% rd+2d)

Working time optional: fast, 10 seconds, 30 seconds, 60 seconds

Display mode: 4 inch touch screen

Communication mode: U disk to store

Working power: AC220V±10% 50Hz

The whole machine power: 1000W

The maximum storage records: 200

Working environment: temperature -10 ℃ ~ 40 ℃ humidity ≤ 80 % RH

Body size: 390×300×200 mm3

Weight: 7kg (without accessories)
