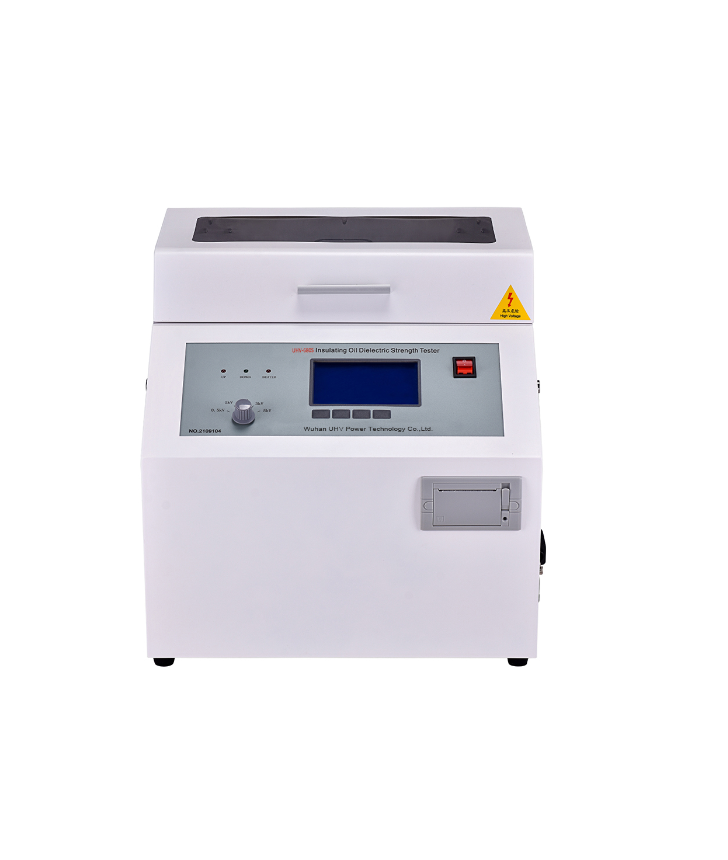

Wuhan UHV-680 Transformer Oil BDV Tester

Step-up transformer capacity: 1.5 kVA

Rate of voltage rise: 5 kV/s，1kV/s ,2.0kV/s，3.0kV/s , 5.0kV/s five gears

Output voltage: 0～80 kV

Aberration rate of power supply:＜1%

Display mode: Big LCD display Chinese characters

Electrode gap: standard  2.5  mm

Boundary dimension: 409 mm×393 mm×388 mm

Instrument weight: 29 kg

Working condition

Environment temperature: 0～40℃

Relative humidity: ≤85%

Working power supply: AC 220V ± 10%

Supply frequency: 50 /60± 5 Hz

Power consumption:＜200 W
