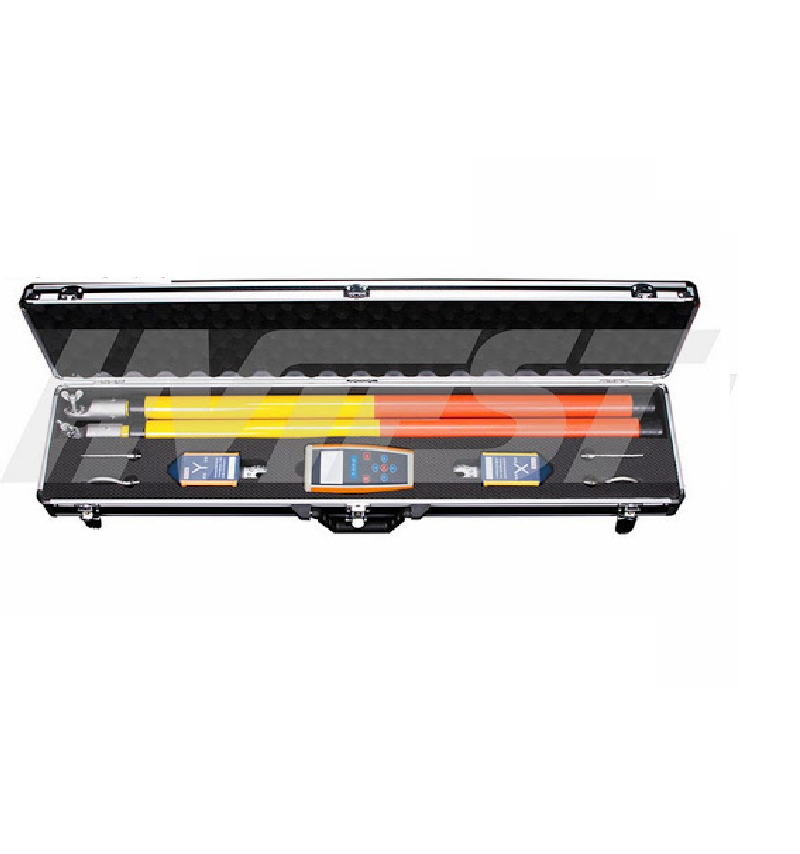

Wuhan TAG-8000 Wireless HV Phase Tester

- Measurement voltage: 10V-500kV (customized)
- Power:
+ Handset：#5 AA Alkaline batteries:2 (1.5V)
+ X, Y detector ：#7 AA Alkaline batteries: 3 (1.5V)
- Wireless transmission distance: Stadia distance 150M
- In-phase: Phase angle shift≤20°( threshold 0-90, self setting)
- Out-phase: Phase angle shift＞20° ( threshold 0-90, self setting)
- Display Accuracy: Quantitative measurements≤5°
- Phase angle resolution: 1°
- Phase sequence measurement: Checked by : 120°clockwise /240°Counterclockwise
- Display: LCD
- Operating temperature: -35℃～+50℃
- Storage temperature: -40℃～+55℃
- Relative humidity: ≤95％ RH
- Handset set: 0.31 kg
- X detector: 0.16 kg
- Y detector: 0.16 kg
