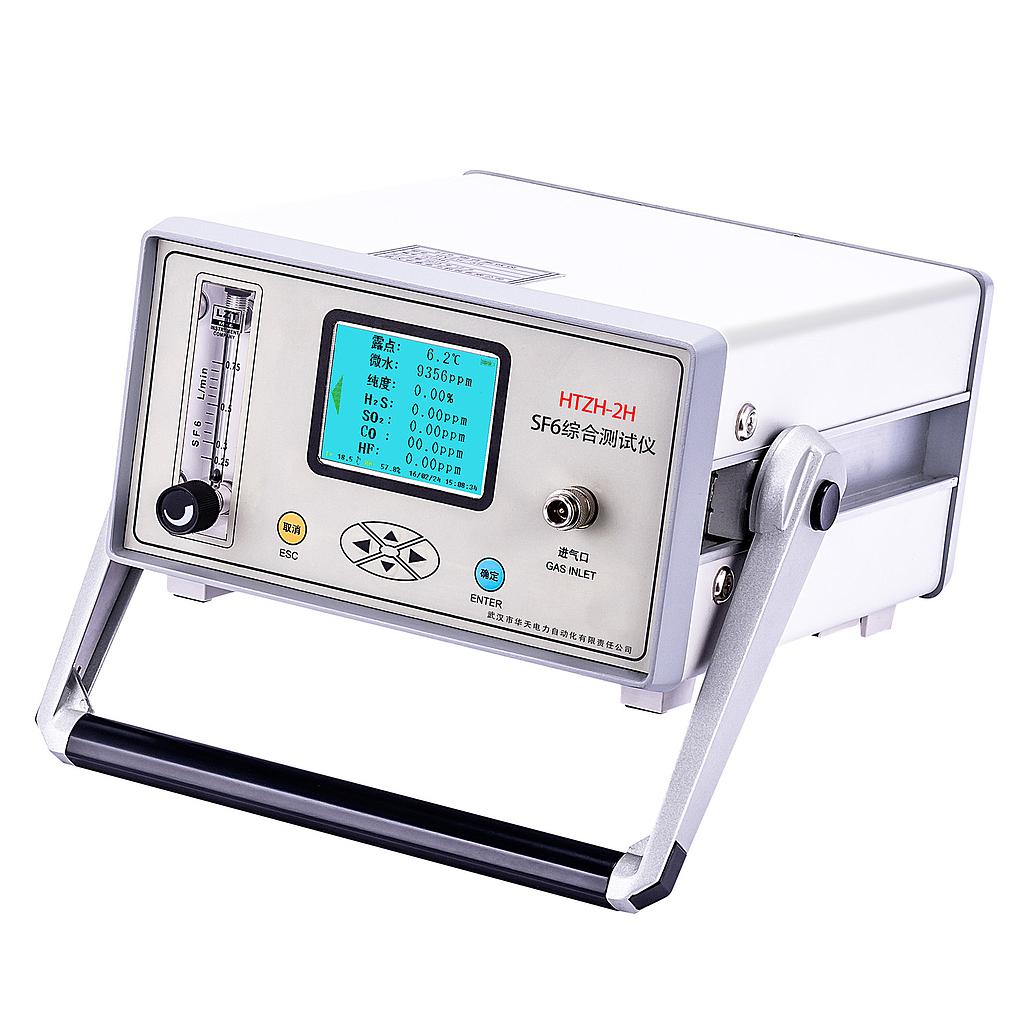

Wuhan HTZH-2H SF6 Synthesized Tester (Purity, Dew point, H2S, SO2, HF, CO)

Purity
- Measuring range：0%～100%
- Accuracy：±0.5%
- Measuring time：< 2min
Dew point
- Measuring range：－80℃～+20℃
- Accuracy：±0.5℃（－80℃～－60℃）;
- Response time（＋20℃）:
63% need 5S, 90% need 45S (－60℃～＋20℃)
63% need 10S，90% need 240S (+20℃～－60℃)
H2S
- Measuring range：0～200ppm
- The minimum detectable amount：≤0.1ppm
- Accuracy：±0.5%
- Stability：0～200ppm
- Repeatability：≤2%
SO2
- Measuring range：0～200ppm
- The minimum detectable amount：≤0.1ppm
- Accuracy：±0.5%
- Stability：0～200ppm
- Repeatability：≤2%
HF(optional)
- Measuring range：0～20ppm
- The minimum detectable amount：≤0.01ppm
- Accuracy：±0.5%
- Stability：0～20ppm
- Repeatability：≤2%
CO(optional)
- Measuring range：0～1000ppm
- The minimum detectable amount：≤1ppm
- Accuracy：±0.5%
- Stability：0～1000ppm
- Repeatability：≤2%
Temperature: －40℃～＋60℃
Humidity: 0～100％RH
Power supply: AC 220V; Built-in rechargeable battery
Battery performance: Charging time : 20 hours ; can work for 10 hours
Weight: 5kg
Dimension: 250×150×300mm3
Working temperature: －40℃～＋80℃
Accessories
- Host
- Instrument Case
- Connector
- Exhaust Pipe
- Intake Pipe
- Power Cord
- Manual, Report, Certificate
